Alge Opti C3 Pro Photofinish Camera
Description
Summary
Standard Gigabit Ethernet connection
Includes PoE power supply
Easy setup in 2-D mode
Super precise 100Hz@XGA 2-D mode
Up to 30,000 lines/sec in line scan mode
2,016 pixel vertical in line scan mode
Built in WTN radio connection
VoIP speech connection
Automatic 50/60 Hz suppression
WiFi connectivity
1/100,000 sec precision
Operating temperature – 20°C to + 50° C
DESCRIPTION
Our latest photo finish system OPTIc3 is the new technical leader on the market! In lane scan mode, it possesses the highest frame rate available on the market. This turns the OPTIc3 into the perfect device for fast sports like motor sports. A 100 Hz 2-D full screen timing mode is ideally suited for special applications like rowing, swimming and further backup purposes. Easiest setup in 2-D mode! VoIP allows voice communication without headset with the starter.
SPECIFICATIONS
Vertical resolution: up to 2016 pixels
Scan Rate: up to 30.000 fps
Recording Time: unlimited; depends on PC, hardware and connection
Lens: C-Mount lens
Timing: TCXO +/- 0.06 ppm@25°C (0,0002s/h)

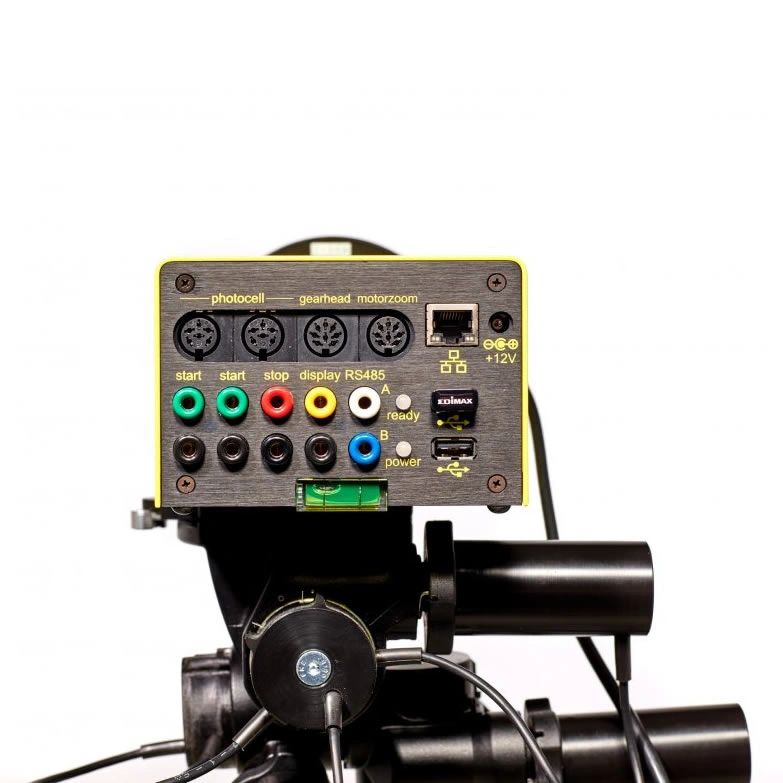

Connections:
2 x start input (banana socket)
1 x finish input (banana socket)
2 x 3 channel input (DIN socket)
1 x display board (banana socket)
1 x motor zoom
1 x gearhead
2 x USB for WLAN
1 x RJ45 (Gigabit Ethernet)
1 x power supply
Power Supply: PoE+ or 9 -13.4 VDC
Temperature Range: -20°C to 50°C (90°F to 122°F)
